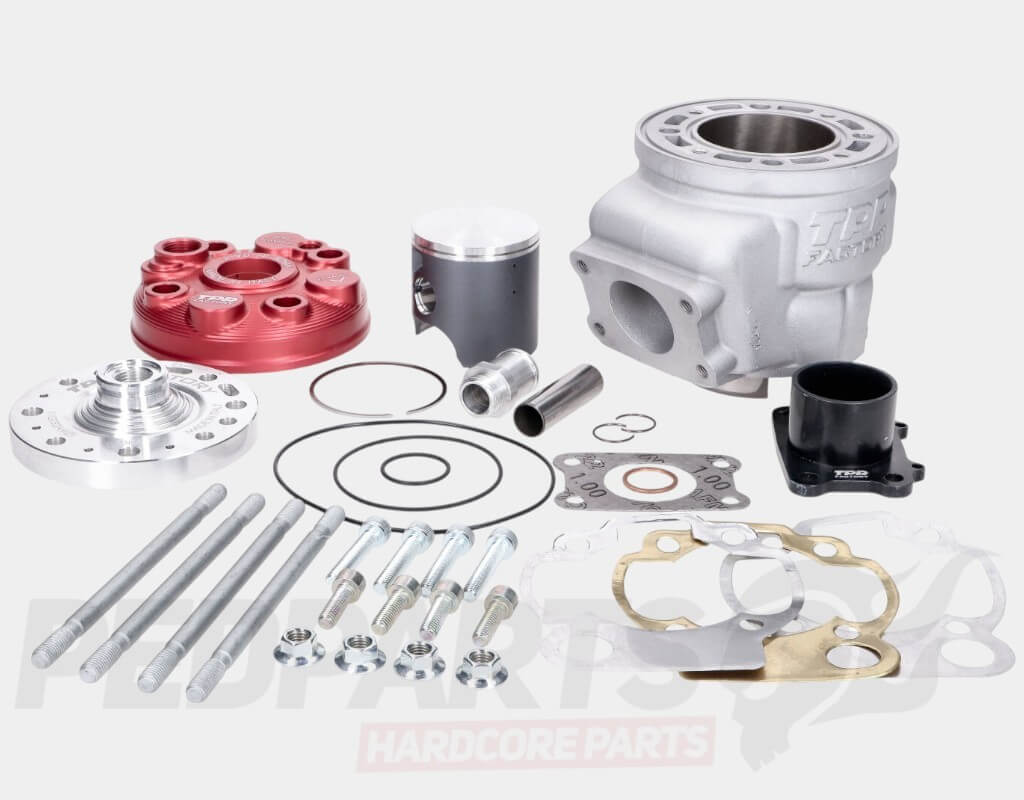

TPR Factory 100cc racing cylinder it for mopeds with Minarelli AM6 engines.
High-end 100cc big bore kit from TPR Factory, designed for maximum racing performance on AM6 engines.

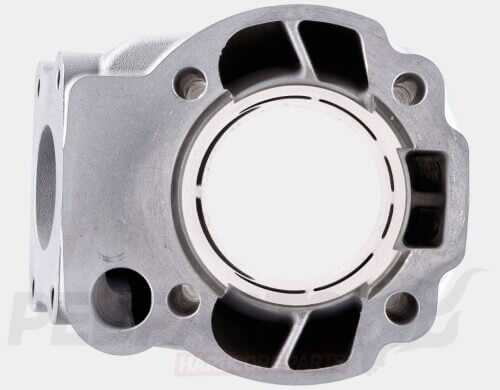

The CNC-machined aluminium cylinder with nickel–silicon coating features 6 transfer ports and a bridged exhaust port. The flange is optimised for 38mm big bore exhausts. A modular red anodised head with water jacket ensures excellent cooling, while the Meteor 52mm single-ring piston delivers reduced friction and high-rev reliability.
Requires a 47mm stroke (98mm conrod) racing crankshaft with 14mm pin (TPR Factory crankshaft recommended). Original Minarelli cases must be modified or use the dedicated TPR 100cc crankcase.
Features:
100cc displacement (52mm bore/ 47mm stroke)
Aluminium cylinder,
Modular red anodised head,
Meteor 52mm single-ring piston (14mm gudgeon pin)

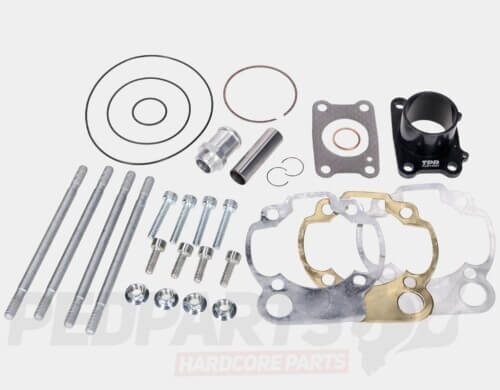

Complete gasket and stud set included.
Professional assembly and tuning required. For racing use only!
99GT52AM00
