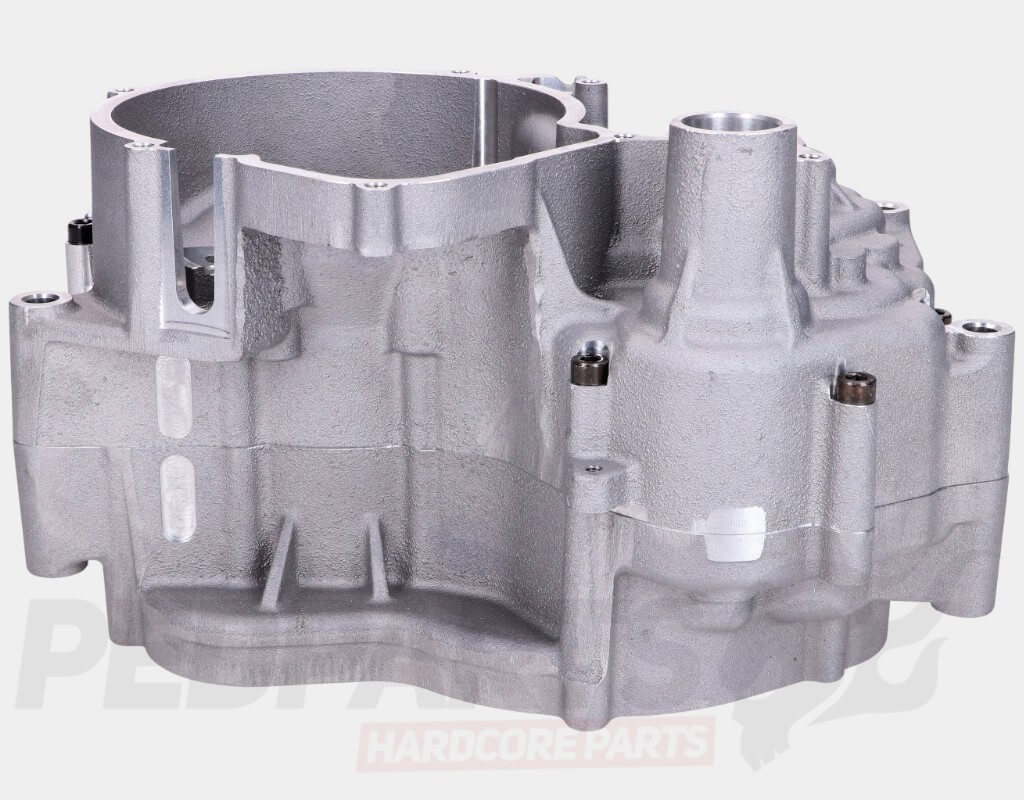

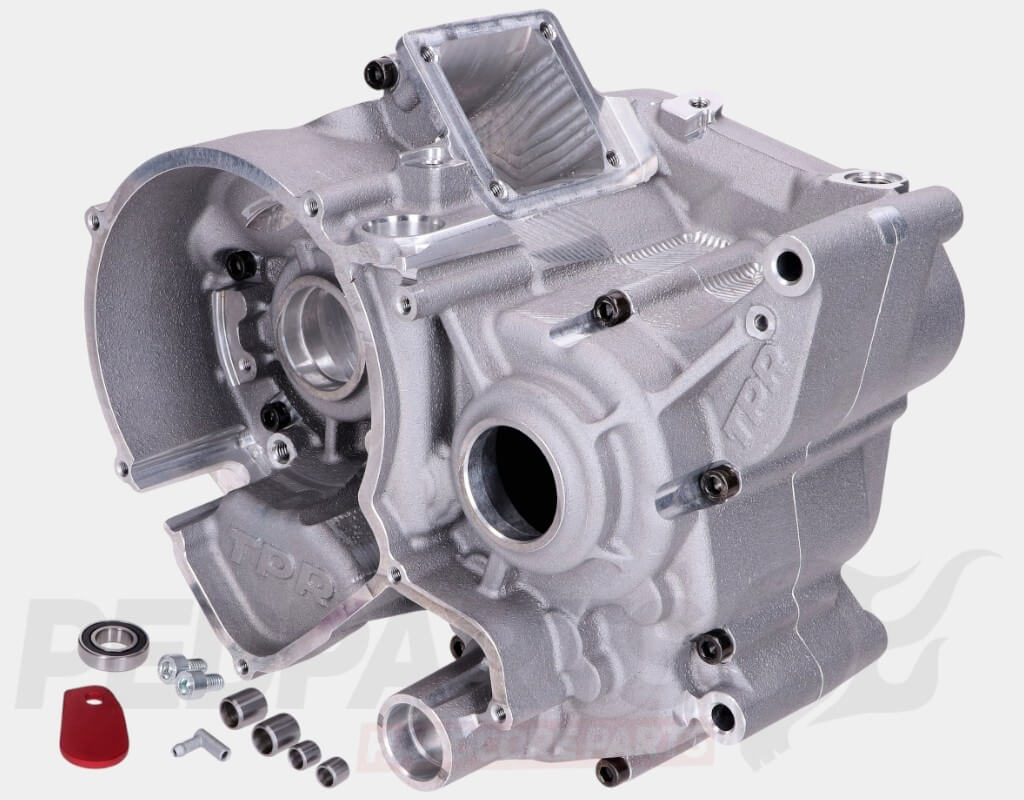

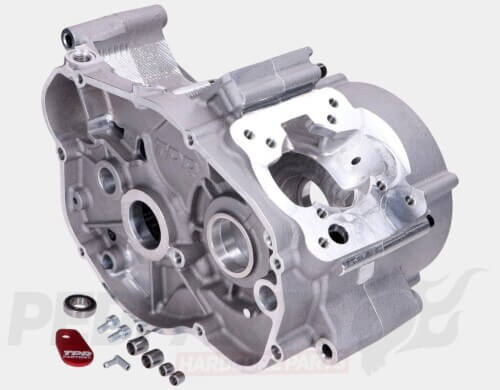

Top Performances TPR Factory Crankcase for mopeds with Minarelli AM6 engines running 100cc cylinders (47mm stroke crankshafts) with standard type long cylinder studs.

High-performance crankcase from the TPR Factory range, designed for Minarelli AM6. Developed specifically for racing use, this engine casing is suitable for big-bore 100cc cylinders.

The casing accepts 100cc cylinder kits with long standard type cylinder studs, without the need to machine the cases. It is fully compatible with the original AM6 gearbox, clutch, & ignition, making installation straightforward.

The cylinder base has the space and stud pattern to accept a flange mounted 100cc cylinder kit although You will need to modify the water pump outlet for these crankcases to accept a flange mounted cylinder, however, the possibility is there.

The intake has been re-engineered for larger flat-slide carburettors and is designed to work with a V-Force 3 reed block to improve airflow.

Manufactured from lightweight cast aluminium, the TPR Factory crankcase weighs only around 4 kg – considerably lighter than the standard item; reducing overall engine mass for sharper throttle response and improved handling.

Specifications:
Material: Cast aluminium
Weight: ~4 kg
Cylinder compatibility: (standard stud 100cc)
Stroke compatibility: 47mm

Professional assembly and tuning required. For racing use only!

TP99CRAM1000
