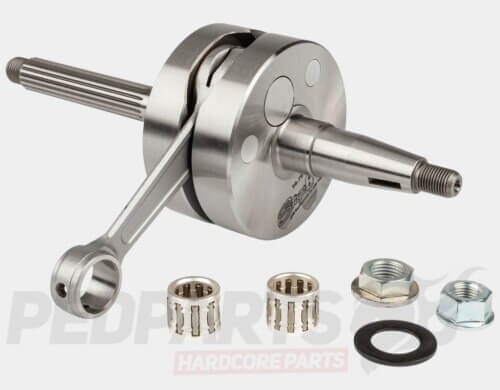

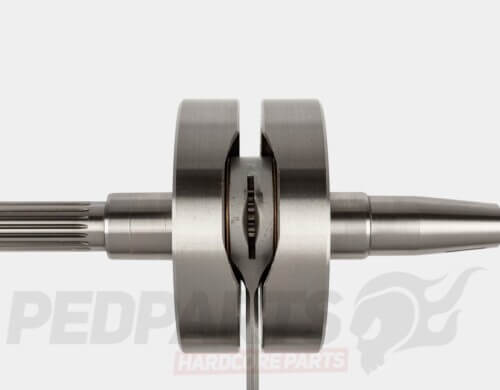

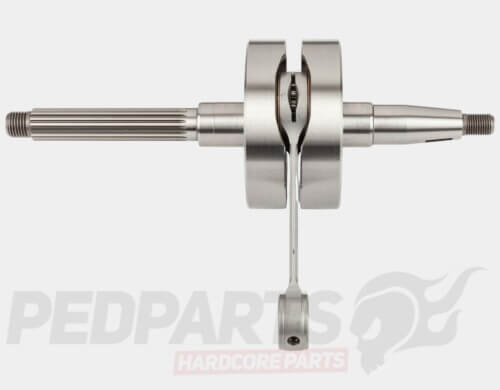

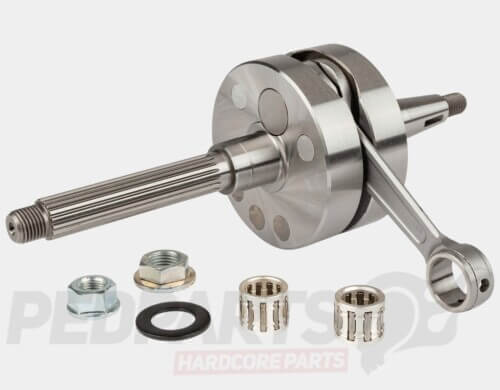

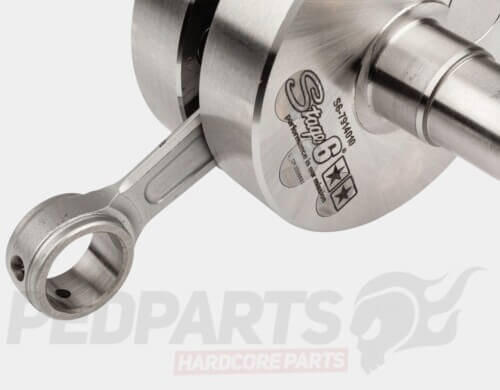

Stage6 R/T 90mm crankshaft for Malossi C-One engines with Stage6 FL 70cc cylinder kits.

The Stage6 R/T high-end racing crankshaft is specially developed for 70cc flange-mount racing cylinders and Malossi MHR C-One tuning crankcases. Designed for high-performance Piaggio and Minarelli engines, it offers the strength and precision required for demanding racing applications.

Featuring a CNC-machined connecting rod and reinforced 18mm crankpin, this crankshaft is built to withstand the demands of high-output racing engines. Precision balancing helps minimise vibrations and ensure smooth engine operation, while the optimised crankshaft design provides improved strength and flow characteristics.

Features:
•High-end Stage6 R/T racing crankshaft,
•CNC-machined connecting rod,
•Reinforced 18mm crankpin for increased durability,
•Precision-balanced for reduced engine vibrations,
•Large crank webs for improved strength,
•Suitable for high-performance 70cc racing setups,
•Includes small-end bearings for 12mm and 13mm piston pins.

Technical Specifications:
•Connecting rod length: 90mm,
•Stroke: 39.3mm,
•Crank web diameter: 74mm,
•Crankpin diameter: 18mm,
•Small-end bearings: 12mm and 13mm piston pins,
•Tuning level: High End.

Important: Designed for Malossi MHR C-One crankcases. Crankcase machining is required due to the larger crank webs, with a minimum internal diameter of 75.5mm after machining. Can also be fitted to original Piaggio crankcases with appropriate modifications. Only compatible with cylinders designed for a 90mm connecting rod or when used with a suitable spacer.

Stage6 S6-7914010
