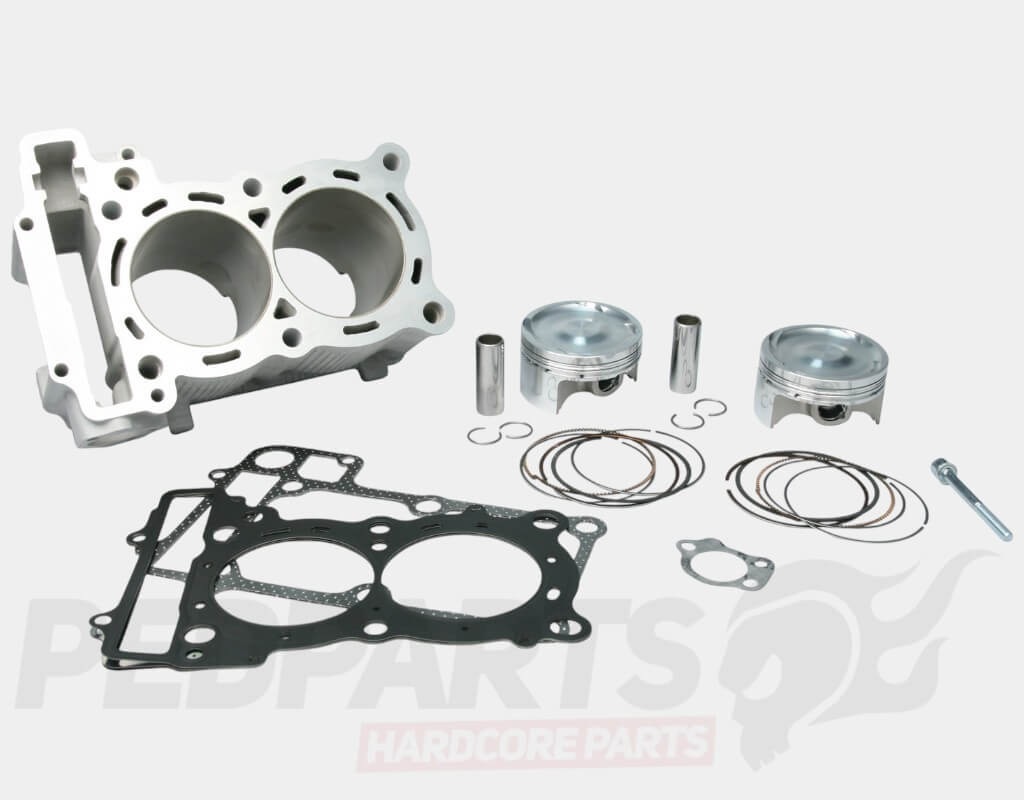

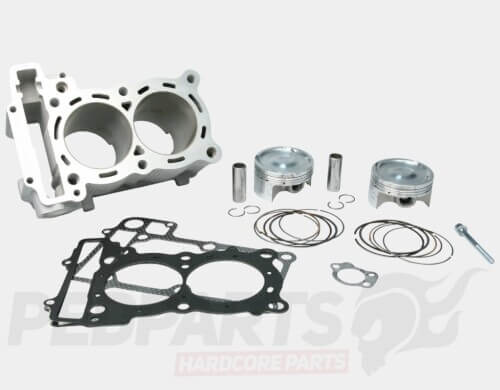

Malossi 560cc cylinder kit for Yamaha TMAX 530cc maxi-scooters produced 2012 onwards.

The Malossi "Super T-Max" cylinder kit is a high-performance upgrade for Yamaha TMAX 530 maxi-scooters, fully designed and manufactured in Italy. It delivers over 15% more power while maintaining exceptional reliability and durability.

Designed and built at Malossi’s Calderara di Reno, Italy facility, this kit combines advanced materials, precision machining, and thorough engineering to enhance performance without compromising the scooter’s mechanical or thermal integrity. A premium upgrade for riders seeking top-level performance and reliability.

Specs:
-Bore: 70mm,
-Stroke: 73mm,
-Displacement: 560cc,
-Compression ratio: 12:1,
-Max. HP @ 7800 RPM,
-Twin-cylinder single block in special Al-Si-Cu alloy, hardened and stress-relieved,
-Cylinder liners: Cermetal (Ni-Ca-Sil) coated, cross-honed at 110°/130°,
-Pistons: Ø70mm forged Al-Si-Cu alloy, 16mm pin, 3 piston rings, reinforced and lightened with constant wall thickness, valve reliefs, racing design,
-Piston rings:
-1st: Chrome-plated steel compression ring,
-2nd: Phosphate-coated steel intermediate ring,
-3rd: 3-piece oil control ring (chrome-plated steel rails + spring),
-Lightweight, taper bore, high-alloy steel gudgeon pin,
-Gas-nitrided and chrome-plated piston rings.

Malossi 3115423
