Malossi BIG BORE Testa Rossa 94cc for Minarelli AM6 2-stroke engines.

High end racing technology, derived from Malossi’s proven seven-port Flanged Mount design, the Testa Rossa 100cc brings unprecedented performance to scooters with AM6 engines.

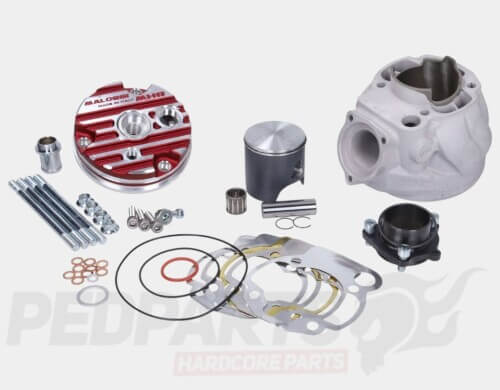

This cylinder kit requires case boring and a reinforced crankshaft with non-standard conrod length. It features a single-ring piston, seven transfer ports, dual exhaust port with crossbar and a modular cylinder head.

Externally it mirrors the Flanged Mount series, while internally it maintains the same high-spec porting layout, only limited by the stud-bolt configuration. The redesigned modular head improves torque delivery and throttle response, with a forged aluminium head cover, CNC-machined and finished in Malossi’s signature red anodising.

Key features:
-100cc displacement,
-Seven-port transfer system with dual exhaust port,
-Modular head with optimised combustion chamber,
-CNC-machined, forged aluminium red anodised head cover,

Specifications:
Bore: 52mm
Stroke: 47mm

You will need to combine this cylinder kit with the Malossi MHR Team 100/47mm Crankshaft & Malossi MHR Exhaust System.

You will need to bore the crankcases to accept the cylinder spigot! Italkit produce a special tool sold here.

For high-end racing applications only!

Malossi 3119078
