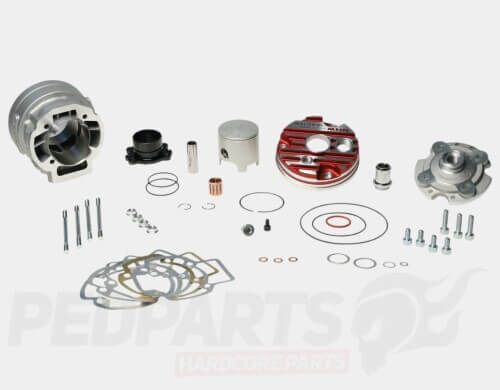

Malossi BIG BORE Testa Rossa 94cc for Piaggio/ Gilera liquid cooled 2-stroke engines.

High end racing technology, derived from Malossi’s proven seven-port Flanged Mount design, the Testa Rossa 94cc brings unprecedented performance to scooters with Piaggio liquid-cooled engines.

This cylinder kit requires case boring (or use of a Malossi C-One case) and a reinforced crankshaft with non-standard conrod length. It features a single-ring piston, seven transfer ports, dual exhaust port with crossbar and a modular cylinder head.

Externally it mirrors the Flanged Mount series, while internally it maintains the same high-spec porting layout, only limited by the stud-bolt configuration. The redesigned modular head improves torque delivery and throttle response, with a forged aluminium head cover, CNC-machined and finished in Malossi’s signature red anodising.

Key features:
-94cc displacement,
-Seven-port transfer system with dual exhaust port,
-Modular head with optimised combustion chamber,
-CNC-machined, forged aluminium red anodised head cover,
-Compatible with original or Malossi C-One cases (requires case boring).

Specifications:
Bore: 52mm
Stroke: 44mm
Capacity: 93.4cc
Advance: 16°
Piston ring clearance: 0.15mm
Squish: 0.55mm
Compression ratio: 01:14.6
Recommended spark plug: Denso Iridium IW34

You will need to combine this cylinder kit with the Malossi MHR Team 90/44mm Crankshaft & Malossi MHR Exhaust System.

For high-end racing applications only!

Malossi 3115385
